112316
Universal Robots
112316

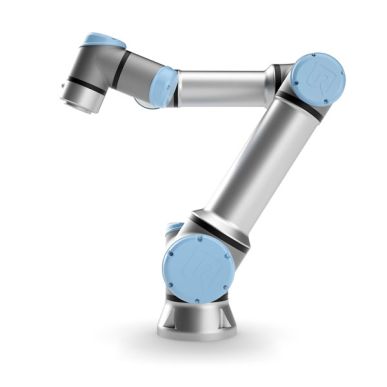

UR16e Pnl Mnt AC
Cobot, 16kg Payload, 900mm Reach, Controller - Panel Mount, AC Input, purchase Teach Pendant separately
$1
Accessories
| Product | Part # | Description | Price | Action |
|---|---|---|---|---|
|
200027
|
Teach Pendant with Button Enable (STD)
|
$1
|
|
|
124191
|
Teach Pendant with 3 Position Enable (3PE)
|
$1
|
|
|
1010528
|
UR Warranty Extension, e-Series, 12 Months
|
$1
|
|
200027
Teach Pendant with Button Enable (STD)
$1
124191
Teach Pendant with 3 Position Enable (3PE)
$1
1010528
UR Warranty Extension, e-Series, 12 Months
$1
Product Specification
Downloads
Type Number
UR16e Pnl Mnt AC
Brand
Universal Robots
Product Family
e-Series
Type
Panel Mount Control
Payload
16 kg
Reach
900 mm
GUI
Polyscope 5
Voltage
AC
Ethernet Ports
1
Communication
EtherNet/IP, MODBUS/TCP, PROFINET, PROFIsafe, ROS
Inputs: Digital
16
Inputs: Analog
2
Outputs: Digital
16
Outputs: Analog
2
Safety IO
Yes
Safety Over Network
Yes
IP Rating
Cobot IP54 / Controller IP20
