Dorner Pallet Sysyems Unique and Innovative
Dorner’s Pallet System conveyors simplify product flow and control with features such as a unique pin tracking system, industry compatible pallet sizes and innovative modules.
The 2200 Series Precision Move Pallet System conveyor and SmartFlex Pallet Systems are advanced in pallet traffic management and are specifically designed to increase efficiency, reduce downtime in automation processes, and provide the accurate conveying.
Pallet System Conveyors are best for:
- Manual and automated assembly
- Product routing and control
- Product inspection and testing
- Assembly automation
FlexMove Pallet System
Modular Design allows for simple configuration and ease of interface.
Features:
- Accurate positioning and routing
- Ideal for assembly processes or inspection
- Components sold as kits to allow for easy design changes and layout flexibility
- Pallets sold as kits to allow fixturing or as completed assemblies
- Automation system that improves efficiency and generation, lowers downtime, and increases accuracy in product movement

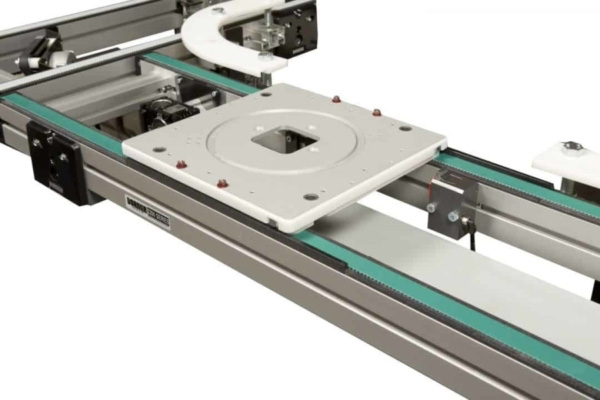

2200 Precision Move Pallet System
Innovative, Modular, Dual Belt Conveyor Pallet Systems for Assembly Automation
Benefits of 2200 Precision Move Pallet System Conveyor
The highly advanced Precision Move Pallet System for assembly automation is ideal for increasing efficiency, generation, and precision of pallet traffic. Additionally, it reduces downtime costs that could disrupt production.
Best For:
- Medium to large sized part movement
- Product routing and control
- Product inspection
- Assembly automation
Sizes & Measurements
- Widths: 160, 240, 320, 400, and 480 mm
- Lengths: Up to 24′ 7″ (7,500 mm)
Loads and Speeds
- Conveyor Load Capacity
- 500 lbs non-accumulating
- 250 lbs accumulated
- Pallet capacity of 30 to 70 lbs
- Speeds up to 114 ft/min (34 m/min)
Conveyors
- Dual Belt conveyors with common drive module
- 25 mm wide, 5 mm pitch timing belt conveyor
- Standard or static conductive belting available
- Aluminum extruded frame with universal T-Slot
- Quick belt change without conveyor removal
Pallets
- 160 mm to 480 mm
- Industry compatible sizes and brushing locations
- Static conductive pallet skirt
- Square and rectangular sizes available
- Pallets are sold as kits of completed assemblies
Pin Tracking System
- Simple and cost effective method of tracking pallets through turns
- Used on 90 Degree Corner and 90 Degree Corner & Merge Modules
