The Simplified Motion Series axes are electromechanical actuators designed for simple and easy wiring, commissioning, and operation, like pneumatic actuators. Movements include end-to-end positioning and pressing/clamping. Each SMS axis consist of an electromechanical actuator mounted to an integrated motor to reduce setup time and cabinet space requirements. And the SMS axes include a wide range of actuator families, with linear and rotary options, precision and dynamic options, and short or long stroke variants, which can meet a diverse set of application needs.
Commissioning
This is quick and easy and doesn’t require any software, computer or other accessories, because all parameters can be set manually directly on the drive. Simplified Motion Series is then connected directly to the controller, either via digital I/O (DIO) or IO-Link®, both of which are integrated as standard.
Benefits of the Simplified Motion Series
- A variety of actuator sizes, strokes, and types to meet your application needs
- Integrated motor reduces the space required in your control cabinet
- Quick and easy commissioning
- Familiar behavior, like an pneumatic actuator
- Easy to operate via digital I/O (DIO) or IO-Link® integrated as standard
Available basic functions can be set via buttons on the side of the integrated motor or via IO-Link®:
- Speed and force
- Reference end position and cushioning
- End positions
Additional, extended functions are available via IO-Link®:
- Remote setting of motion parameters
- Copy and backup function for parameter transfer between drive and computer or from the computer to another identical drive
- Reading functions of the process parameters
1) During commissioning, all relevant parameters can be set directly on the integrated drive. The parameters can be set easily and intuitively:
- Speed for “out” and “in” movement
- Force of the drive in the “out” position
- Setting the reference end position
- Setting the position “Start force-controlled movement”
- Demo mode allows for a manual test of the movements
2) Simple electrical connection via M12 plug design
- Power (4-pin): power supply for the motor
- Logic (8-pin): control signal, sensor signal and power for the integrated electronics
Product overview

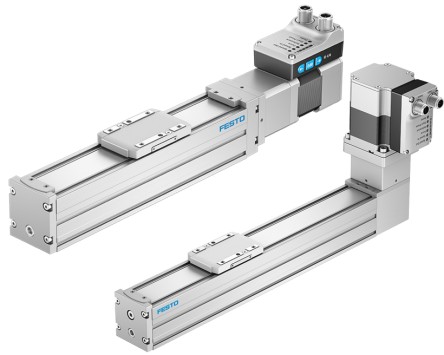

Ball screw axis and toothed belt axis ELGS
Extremely compact and cost-effective ball screw axis ELGS-BS with precise, resilient recirculating ball bearing guide for the slide and powerful ball screw drive.
- Three sizes for a payload of up to 20 kg at a max. stroke of 800 mm
Extremely cost-effective and durable toothed belt axis ELGS-TB with precise, resilient recirculating ball bearing guide for the slide in a compact design – especially as a main axis in handling systems.
- Two sizes for up to 1.3 m/s at a max. stroke of 2,000 mm
Common features:
- Permanently attached stainless steel cover strip protects the internal guide and the ball screw or toothed belt
- Unique “one-size-down” assembly system for mounting with each other and with the mini slide EGSS
- Optional: vacuum connection to minimise emissions of particulates from the axis to the system
- The motor can be rotated 4 x 90° – this can be modified at any time

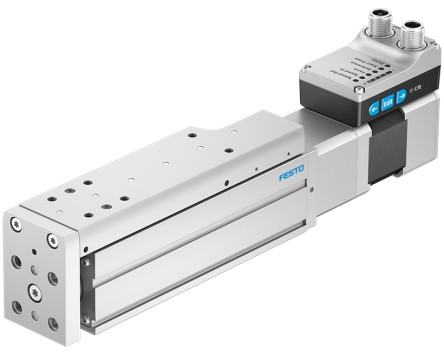

Mini slide EGSS
Cost-effective and resilient EGSS with smooth ball screw operation for vertical Z-movements or individual, guided linear movements in every mounting position.
The internal linear guide absorbs transverse loads and provides very good resistance to torsion at high torques.
- Three sizes with a max. stroke of 200 mm
- The electric rotary drive ERMS can be mounted directly without the need for adapters
- Optional: ducted compressed air compensation prevents particles or moisture from entering and particles leaking into the environment
- Unique “one-size-down” assembly system in conjunction with the ball screw and toothed belt axes ELGS-BS/-TB.
- The motor can be rotated 4 x 90° – this can be modified at any time

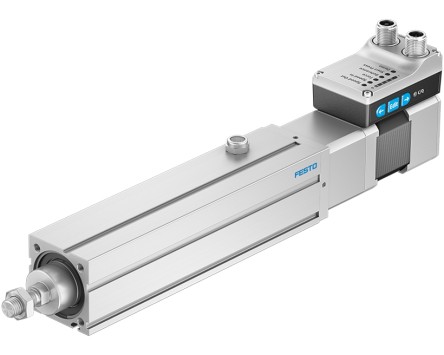

Electric cylinder EPCS
The EPCS is suitable for single linear movements in every mounting position and its smoothly running ball screw allows precise and rapid positioning. As an extremely cost-effective complete solution, the electric cylinder is ideally suited for applications such as positioning or clamping, distribution, sorting or ejection, and in handling systems as a simple Z-axis.
- Three sizes with a max. stroke of 500 mm
- Simple and cost-effective position sensing with proximity sensor, flexible, reliable and quick to mount, can be retrofitted or repositioned at any time
- Optional: ducted compressed air compensation prevents particles or moisture from entering and particles leaking into the environment
- Unique “one-size-down” assembly system in conjunction with the ball screw and toothed belt axes ELGS-BS/-TB
- The motor can be rotated 4 x 90° – this can be modified at any time

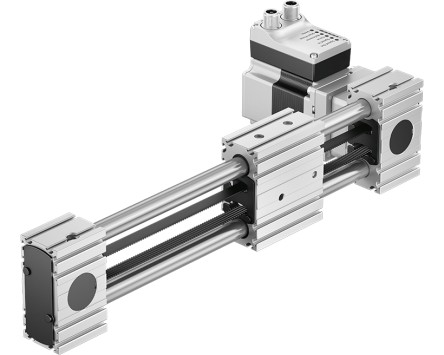

Toothed belt axis ELGE
The toothed belt axis offers very good running performance thanks to its recirculating ball bearing guide ELGE-TB. As an attractively priced complete solution with a cost-optimised design, it is an ideal and economical choice for very simple tasks with comparatively low requirements for mechanical load, dynamic response and precision, as well as for the environment.
- High running performance of 5000 km
- The motor can be fitted on both sides, above or below, and rotated 4 x 90° – this can be modified at any time

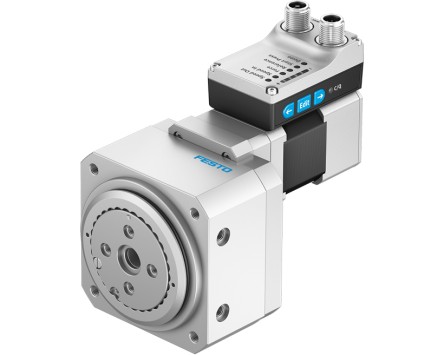

Rotary drive ERMS
As a cost-effective solution package, the rotary drive ERMS is ideal for simple swivel tasks. It has a rotary plate with sturdy, precise and backlash-free ball bearings so it can absorb transverse loads and torques.
- Two sizes, each with a swivel angle of 90° and 180°
- It offers a sealed hollow shaft as an integrated through-feed for cables or tubing
- With the standardised mounting interface it can be connected directly to the electric mini slides EGSL, EGSC and EGSS.
